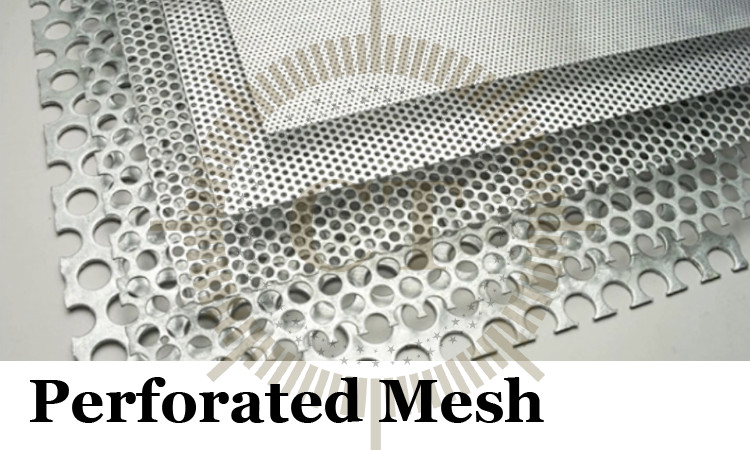

Perforated Plate

		Open Area			14.50%	18.90%	22.60%	22.60%	22.60%	27.90%	32.60%
		Pitch (Center-Center) mm			1.25	1.75	2	3	4	4.5	5
		Diameter Lubang mm			0.5	0.8	1	1.5	2	2.5	3
Thick		Plat Size (mm)		Before	After Perforated (Kg)
mm	Actual	Length	Width	Perforated (Kg)	After Perforated (Kg)
0.5	0.4	1000	2000	6.24	5.34	-	-	-	-	-	-
0.8	0.7	1000	2000	10.92	-	8.86	8.45	8.45	8.45	7.87	7.35
0.8	0.7	1200	2400	16.1	-	-	-	12.46	12.46	11.61	10.85
1	0.9	1200	2400	20.7	-	-	-	16.02	16.02	14.92	13.95
1.2	1.1	1200	2400	25.3	-	-	-	-	19.58	18.24	17.05
1.5	1.4	1200	2400	32.2	-	-	-	-	-	23.22	21.70
2	1.8	1200	2400	41.4	-	-	-	-	-	-	27.90
3	2.7	1200	2400	62.1	-	-	-	-	-	-	41.86

		Open Area			32.60%	29.60%	35.40%	40.20%	40.20%	46.20%	40.20%
		Pitch (Center-Center) mm			5	7	8	9	12	14	18
		Diameter Lubang mm			3	4	5	6	8	10	12
Thick		Plat Size (mm)		Before	After Perforated (Kg)
mm	Actual	Length	Width	Perforated (Kg)	After Perforated (Kg)
0.5	0.4	1000	2000	6.24	-	-	-	-	-	-	-
0.8	0.7	1000	2000	10.92	7.36	7.69	7.06	6.53	6.53	5.87	6.53
0.8	0.7	1200	2400	16.1	10.85	11.33	10.40	9.63	9.63	8.66	9.63
1	0.9	1200	2400	20.7	13.95	14.57	13.37	12.38	12.38	11.14	12.38
1.2	1.1	1200	2400	25.3	17.05	17.81	16.34	15.13	15.13	13.61	15.13
1.5	1.4	1200	2400	32.2	21.70	22.67	20.80	19.26	19.26	17.32	19.26
2	1.8	1200	2400	41.4	27.90	29.15	26.74	24.76	24.76	22.28	24.76
3	2.7	1200	2400	62.1	41.86	43.72	40.12	37.14	37.14	33.41	37.14
