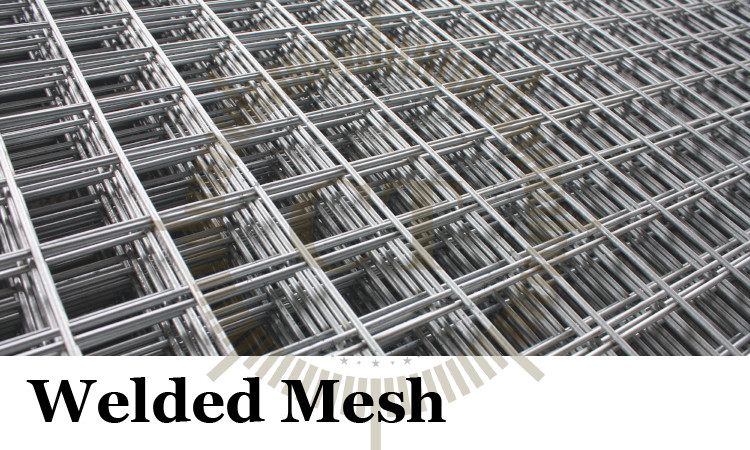

Welded Mesh

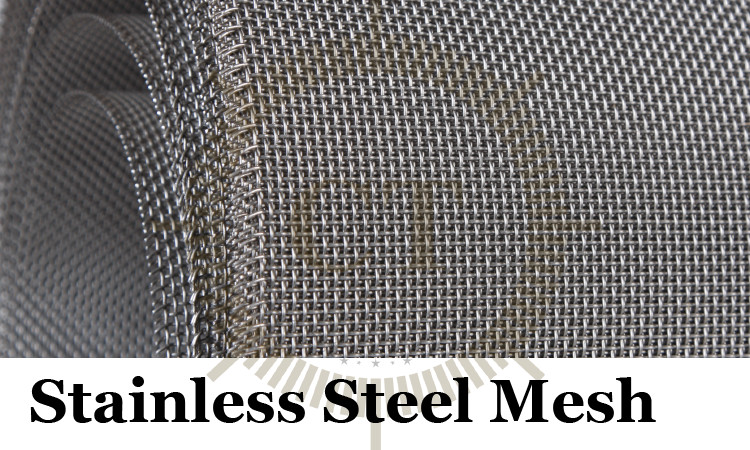

Stainless Steel Mesh

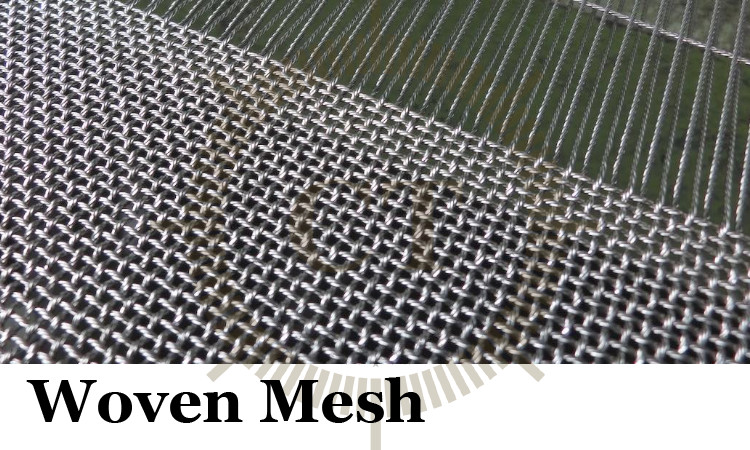

Woven Mesh

Information

Heavy Welded Mesh Rol
Pitch Wire ∅ Type Finish Width Length Weight
100 x 100 mm 4 mm 448 Galvanized 1.8 m 30 m 114 Kg
100 x 100 mm 3.25 mm 4410 Galvanized 1.8 m 30 m 72 Kg
100 x 50 mm 3.15 mm 4210 Galvanized 1.8 m 30 m 102 Kg
50 x 50 mm 4 mm 228 Galvanized 1.8 m 30 m 200 Kg
50 x 50 mm 4 mm 45k Galvanized 0.9 m 30 m 105 Kg
50 x 50 mm 3 mm 2210 Galvanized 1.8 m 30 m 112 Kg
50 x 50 mm 3 mm 35k Galvanized 0.9 m 30 m 58 Kg
50 x 50 mm 2.6 mm 2212 Galvanized 1.8 m 30 m 100 Kg
50 x 50 mm 2 mm 2214 Galvanized 1.8 m 30 m 53 Kg
50 x 25 mm 1.95 mm 2114 Galvanized 1.8 m 30 m 79 Kg
25 x 25 mm 2 mm 1114 Galvanized 1.2 m 30 m 70 Kg
25 x 25 mm 2 mm 225k Galvanized 0.9 m 30 m 48 Kg
75 x 75 mm 1.2 mm Roofmesh Galvanized 1.8 m 30 m 13.5 Kg
Light Welded Mesh Rol
Pitch Wire ∅ Finish Width Length Weight
25 x 25 mm 1 mm Galvanized 1 m 28 m 13 Kg
1" x 1" 0.95 mm EG/R 0.9 m 10 m 4 Kg
3/4" x 3/4" 0.6 mm Galvanized 0.9 m 15 m 3.5 Kg
3/4" x 3/4" 0.8 mm EG/R 0.9 m 10 m 4 Kg
1/2" x 1/2" 1 mm PVC 0.9 m 15 m 8 Kg
1/2" x 1/2" 0.9 mm Galvanized 1.2 m 25 m 23 Kg
1/2" x 1/2" 0.7 mm Galvanized 0.9 m 25 m 10 Kg
1/2" x 1/2" 0.6 mm Galvanized 0.9 m 10 m 2.5 Kg
1/2" x 1/2" 0.65 mm EG/R 0.9 m 10 m 4 Kg
1/2" x 1/2" 0.6 mm EG/R 0.9 m 15 m 4.5 Kg
12 x 12 mm 1 mm Galvanized 1 m 30 m 25 Kg
12 x 12 mm 1.2 mm Galvanized 0.9 m 30 m 33 Kg
1.4" x 1/4" 0.7 mm PVC 0.9 m 15 m 5 Kg
1.4" x 1/4" 0.5 mm Galvanized 0.9 m 12 m 5 Kg
1.4" x 1/4" 0.46 mm EG/R 0.9 m 10 m 4 Kg
Pitch (mm) Wire (mm) Width (mm) Length (mm) Weight (mm)
6 x 6 0.7 1000 30 28
10 x 10 1 1000 30 39.5
12 x 12 1 1000 30 29
15 x 15 1.2 1000 30 30
20 x 20 1 1000 30 20
25 x 25 2 1000 30 60
25 x 25 2 1200 30 73
Mesh Wire Hole Width Weight Weight Type
mm mm mtr Kg/m2 Rol SUS
2 1.1 11.60 1 1.18 35.50 201
3 0.98 7.49 1 1.42 42.50 201
4 0.7 5.65 1 0.97 29.00 201
5 0.5 4.58 1 0.62 18.50 201
5 0.75 4.33 1 1.37 41.00 201/304
6 0.5 3.73 1 0.73 22.00 201
6 0.6 3.63 1 1.07 32.00 201/304
8 0.43 2.75 1 0.73 22.00 201
8 0.54 2.64 1 1.15 34.50 201/304
10 0.38 2.16 1 0.72 21.50 201
10 0.43 2.11 1 0.92 27.50 201/304
12 0.36 1.76 1 0.77 23.00 201
12 0.41 1.71 1 1.00 30.00 201/304
14 0.32 1.49 1 0.70 21.00 201
16 0.28 1.31 1 0.67 18.50 201/304
16 0.28 1.31 1.2 0.73 22.00 201
16 0.35 1.24 1 0.97 29.00 201
18 0.26 1.15 1 0.57 17.00 201/304
18 0.27 1.14 1.2 0.78 23.50 201
18 0.34 1.07 1 1.02 30.50 201
20 0.26 1.01 1 0.67 20.00 201
20 0.34 0.93 1 1.13 34.00 201/304
20 0.4 0.87 1.6 2.50 75.00 304
20 0.45 0.82 1 1.98 59.50 201
24 0.21 0.85 1 0.53 15.00 201
30 0.18 0.67 1 0.48 14.50 201/304
30 0.25 0.60 1 0.93 28.00 201/304
30 0.3 0.55 1.6 2.12 63.50 304
34 0.21 0.54 1 0.73 22.00 201/304
40 0.16 0.48 1 0.50 15.00 201/304
40 0.23 0.41 1 1.05 31.50 201/304
40 0.27 0.37 1 1.33 40.00 201
40 0.25 0.39 1.6 1.96 58.80 304
40 0.27 0.39 1.6 1.43 68.50 304
50 0.14 0.37 1 0.48 14.50 201/304
60 0.14 0.28 1 0.58 17.50 201/304
60 0.18 0.24 1 0.97 29.00 201/304
80 0.12 0.20 1 0.57 17.20 201/304
80 0.15 0.17 1 0.88 26.50 201/304
100 0.1 0.15 1 0.47 14.00 201/304
120 0.075 0.14 1 0.33 10.00 201
150 0.065 0.10 1 0.31 9.20 201
180 0.05 0.09 1 0.22 6.60 302
200 0.05 0.08 1 0.23 7.00 302
250 0.05 0.05 1 0.23 7.00 302
300 0.05 0.03 1 0.23 7.00 304
325 0.04 0.04 1 0.20 6.00 304
