Metal Sheet
Information

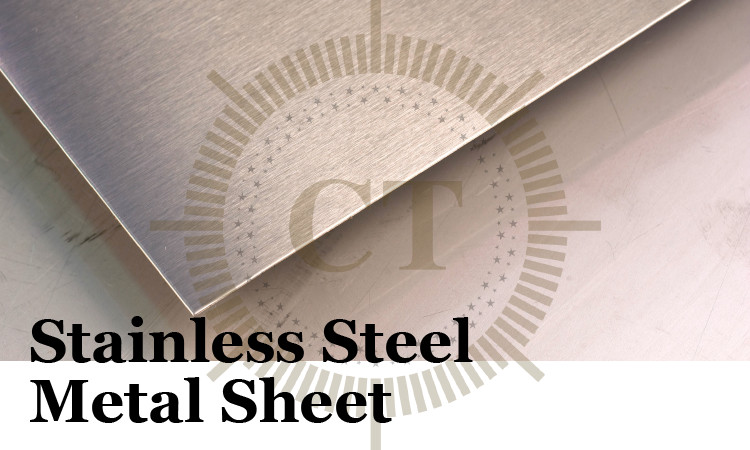

Stainless Steel Coil / Plate
| Finish | Description | Application |
|---|---|---|
| No. 1 | Hot rolled annealed, shot blasted and pickled. | Pipe, tubing, chemical tank, general fabrication. |
| No. 2B | Cold rolled annealed and pickled and skin passed. | Food industry, kitchen utensils, medical equipment, construction material. |
| BA | Bright annealed finish, processed with bright heat treatment after cold rolling. | Decorative usage, kitchen utensils, electric equipment, building construction. |
| No. 8 Mirror | Cold rolled annealed and pickled and polished with 150 to 180 grit. | Kitchen utensil, building construction, medical equipment. |
| HL | Cold rolled annealed and pickled, polished with 80 - 140 grit. Provide a long grain finish hairline look. | Kitchen utensils, building construction, medical equipment. |
Stainless Steel Chequer Plate SUS 304
| Thickness | Width | Length | Type |
|---|---|---|---|
| 1.5 mm | 1220 | 2440 | SUS 201/304 |
| 2 mm | 1220 | 2440 | SUS 201/304 |
| 3 mm | 1220 | 2440 | SUS 201/304 |
Product Dimension
| Product | Dimension | Thickness | |
|---|---|---|---|
| Min | Max | ||
| Hot Rolled Coil | ≤ 1280 mm | 2.5 | 12 |
| Cold Rolled Coil | ≤ 1250 mm | 0.5 | 3.15 |
| Hot Rolled Plates | 4' x 8' | 4 | 20 |
| Colled Rolled Plates | 1000 x 2000 | 0.4 | 3 |
| Colled Rolles Plates | 4' x 8' | 0.4 | 3 |
* Other Size & specification can be specially ordered. Please contact our sale assistance.
Mechanical Properties
| Grades | Tensile Strength Mpa (min) | Yield Strength Mpa (min) | Elongation % min | Hardness Rockwell B (max) |
|---|---|---|---|---|
| J4 | 650 | 352 | 40 | 100 |
| SUS 304 | 515 | 205 | 40 | 92 |
| SUS 310 | 515 | 205 | 40 | 95 |
| SUS 316 | 515 | 205 | 40 | 95 |
| SUS 316L | 485 | 170 | 40 | 95 |
| SUS 430 | 415 | 205 | 22 | 89 |
Chemical Composition
| Grades | Type | C | Mn | P | S | Si | Cr | Ni | Mo | N PPM | Other |
|---|---|---|---|---|---|---|---|---|---|---|---|
| J4 | Austenitic Cr-Mn | 0.1 | 8.5 - 10.0 | 0.08 | 0.01 | 0.75 | 15.00-16.00 | 1.00-2.00 | - | 2000 | Cu=1.5-2.0 |
| SUS 304 | Austenitic Cr-Ni | 0.07 | 2 | 0.045 | 0.03 | 0.75 | 18.00-19.50 | 8.00-10.50 | - | 1000 | - |
| SUS 310 | Austenitic Cr-Ni | 0.25 | 2 | 0.045 | 0.03 | 1.5 | 24.00-26.00 | 19.00-22.00 | - | - | - |
| SUS 316 | Austenitic Cr-Ni | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | 1000 | - |
| SUS 316L | Austenitic Cr-Ni | 0.03 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | 1000 | - |
| SUS 430 | Ferritic | 0.12 | 1 | 0.04 | 0.03 | 1 | 16.00-18.00 | 0.75 | - | - | - |
Standard ASTM A240 & A370.

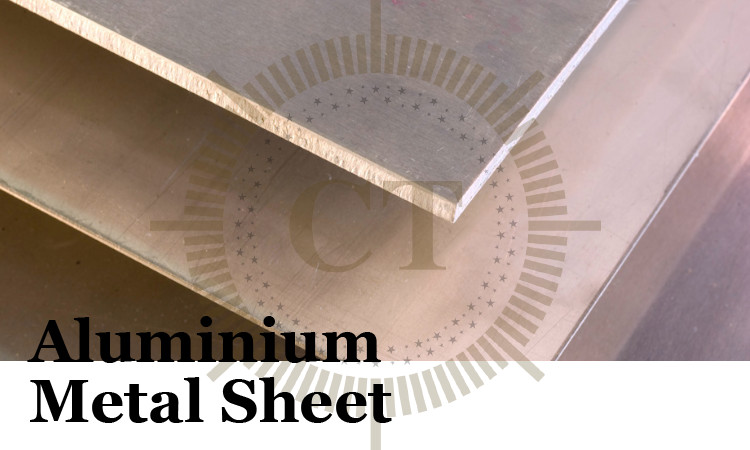

Aluminum
| Specification & Dimension | Pattern | |
|---|---|---|
| 2 Bar | 5 Bar | |
| Alloy | A 3105 | A 1100 |
| Hardness | H18 | H14 |
| Thickness | 1-4 mm | 1-4 mm |
| Width | Max 1200 | Max 1200 |
| Length | Max 6000 | Max 6000 |
| Common Size | 1000 x 2000 | 1000 x 2000 |
| Standard | 1200 x 2400 | 1200 x 2400 |
Stainless Steel
| Dimension | Strip Thickness |
|---|---|
| 1-4 mm | |
| Length (L) | 26.5 mm |
| Width (W) | 7.7 mm |
| Height (H) | 1-1.5 mm |
| Pitch Size (P) | 55 mm |
| Angle of Profile to Rolling Direction | 45 |
