Information

Type	SWD	LWD	Strand		Approx.	Size
Type	SWD	LWD	Thickness	Width	Weight	A x B
Ornamesh
715	11	22	0.7 mm	1.5 mm	3.5	1.2 x 2.4
1015	11	22	1 mm	1.5 mm	6	1.2 x 2.4
1020	17	38	1 mm	2 mm	4	1.2 x 2.4
1620	17.5	38	1.6 mm	2 mm	6	1.2 x 2.4
1628	25	58	1.6 mm	2.8 mm	8	1.2 x 2.4
2028	25	56	2 mm	2.8 mm	9	1.2 x 2.4
3035	25	56	3 mm	3.5 mm	17	1.2 x 2.4
3045	35	76	3 mm	4.5 mm	15	1.2 x 2.4
3032	25	36	3 mm	3.2 mm	12	1.2 x 2.4
Gridmesh
30080	30	75	3 mm	8 mm	28	1.2 x 2.4
50075	33	75	5 mm	7.5 mm	50	1.2 x 2.4
50105	33	75	5 mm	10.5 mm	65	1.2 x 2.4
50080	44	135	5 mm	8 mm	36	1.2 x 2.4
50110	46	135	5 mm	11 mm	48	1.2 x 2.4

Material Thickness (mm)	Cutting Thickness (mm)	Whole (SW x LW)	Width	Length	Weight	Type
0.9	1.5	10 x 20 mm	1 m	30 m	19.5 Kg	U 1015
0.9	2.18	18 x 39 mm	1 m	30 m	16.5 Kg	DD 1025
0.3	0.55	2.5 x 5 mm	1 m	30 m	10.5 Kg	E0505
0.6	0.75	3 x 6 mm	1 m	30 m	24.5 Kg	F0810
0.6	0.8	6 x 10 mm	1 m	30 m	14.5 Kg	J 0810
0.8	0.7	6 x 10 mm	1 m	30 m	17 Kg	J 1010

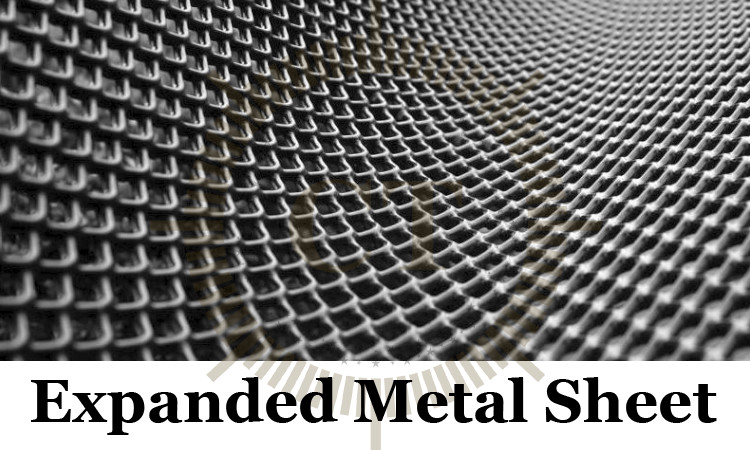

Expanded Metal
